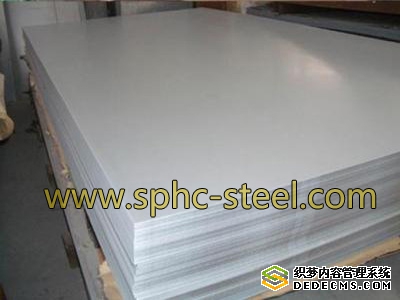

Electrical Steel B35AH300 surface is smooth, flat and uniform thickness can be improved fill factor core, adhesion and weldability surface of the insulating film is good, and can improve the corrosion resistance punching
Electrical Steel B35AH300 is a soft magnetic alloy ferrosilicon very low carbon content, usually silicon content of 0.5 to 4.5%. Added silicon can improve iron resistivity and maximum permeability and lower coercive force, core loss (iron loss) and magnetic aging.
B35AH300 steel size
Thickness : 0.35,0.50,0.65mm
Width : 800-1000mm
Length ≤2.0m
Electrical Steel B35AH300 Mechanical Properties
|
Grade |
Nominal thickness（mm） |
tensile strength L（N/mm2） |
Yield Strength L（N/mm2） |
Elongation L（%） |
Hardness HV1 |
Bending frequency (times) |
Stacking factor（%） |
|
0.35 |
7.70 |
427 |
276 |
32 |
156 |
≥15 |
